UVP XX-Series UV Bench Lamps

  • Various fixture sizes, watts and wavelengths are available

  • Lamps include holes on each end of the fixture for hanging or mounting the lamp

  • Lamps are manufactured with a durable aluminum housing and powder paint scratch resistant finish

  • Shortwave lamps can be used in an upward facing position for purifying air or in a downward position for sanitizing work surfaces

  • 254 nm UV can kill up to 99% of organisms from bacteria, yeast, mold spores, germs and viruses

Product Details

UVP Bench XX-Series UV Lamps offer a complete selection of models - fixture only or with a choice of the following wavelengths: longwave, BLB (black light blue), shortwave or midrange. Shortwave UV (254 nm) offers a reliable and effective tool for sterilization and sanitation applications in hospitals, laboratories, pharmaceutical companies and clinics. UV intensity can be increased by bringing the lamp closer to object being sterilized. The 352 nm BLB tubes can be used in inspection and testing applications.

  • Shortwave UV: Sterilization and sanitation
  • Longwave/Midrange: Fluoresence and inspection

How to calculate exposure time for sterilization with shortwave UV. When you know the micro-organism to be destroyed and how much energy is required, divide the energy required (in units mW/cm2 at 12 inches for the XX-15S) to calculate the total exposure time required to do the job.

Technical Data

Specifications
UV Source

Select from 254 nm, 365 nm, 365 nm BLB and 302 nm.
Refer to the Part Numbers tab to determine which wavelengths are available in each lamp size. The 352 nm BLB tube is available as an option for use in the XX-15 lamp fixture.

Watts

Select from 15 watt, 20 watt or 40 watt

XX-15 Dimensions

19.75L x 6W x 4.25H in. (502 x 152 x 108 mm)
Weight: 5 lb (2.3 kg)

XX-20 Dimensions

24L x 6W x 4.25H in. (610 x 152 x 108 mm)
Weight: 10 lb (4.5 kg)

XX-40 Dimensions

49.6L x 6W x 4.25H in. (1260 x 152 x 108 mm)
Weight: 20 lb (9.0 kg)

Exposure Stand

20W x 6D x 13H in.
Weight: 8 lb (3.6 kg)

Order Information

Part Numbers
115 V230 VModelDescription
XX-Series - 15 Watt
95-0042-0395-0042-02XX-15XX-15 Bench Lamp Fixture (no UV tubes)
95-0042-0695-0042-11XX-15BLBXX-15BLB Bench Lamp, 365 nm BLB

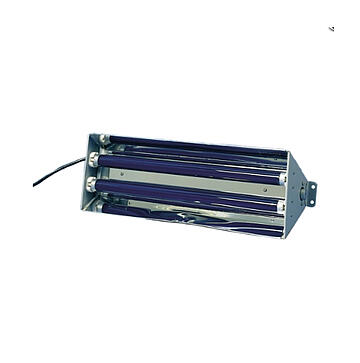

95-0042-0595-0042-09XX-15SXX-15S Bench Lamp, 254 nm
95-0042-0795-0042-13XX-15LXX-15LW Bench Lamp, 365 nm
95-0042-0895-0042-15XX-15MXX-15MR Bench Lamp, 302 nm
XX-Series - 20 Watt
95-0045-0195-0045-02XX-20XX-20S Bench Lamp, No UV tubes

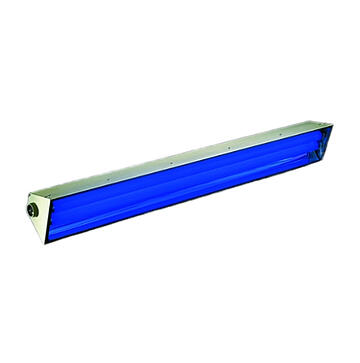

95-0045-0495-0045-05XX-20BLBXX-20BLB Bench Lamp, 365 nm BLB
95-0045-0795-0045-08XX-20SXX-20S Bench Lamp, 254 nm
XX-Series - 40 Watt
95-0043-0195-0043-02XX-40XX-40 Bench Lamp, No UV tubes
95-0043-0495-0043-05XX-40BLBXX-40BLB Bench Lamp, 365 nm BLB
95-0043-0795-0043-08XX-40SXX-40S Bench Lamp, 254 nm
95-0043-1395-0043-14XX-40MXX-40M Bench Lamp, 302 nm
Replacement Parts / Accessories
18-0062-01Exposure StandXX-15 Stand - The shelf is adjustable to different levels for repeatable exposure of samples
38-0172-02FilterFilter for XX-15S
Note: The tubes in lamp fixtures are interchangeable for applications that require different wavelengths. Order tubes of the same wattage.
34-0009-02Tube, 15 Watt, 365 nm
34-0017-01Tube, 15 Watt, 365 nm BLB
34-0017-02Tube, 15 Watt, 352 nm BLB
34-0039-01Tube, 15 Watt, 302 nm
34-0008-01Tube, 15 Watt, 254 nm
34-0068-01Tube, 20 Watt, 365 nm BLB
34-0067-01Tube, 20 Watt, 254 nm
34-0068-02Tube, 40 Watt, 365 nm BLB
34-0067-02Tube, 40 Watt, 254 nm
34-0070-03Tube, 40 Watt, 302 nm
