UVP Field Packs

  • UVP Field Packs are lightweight (0.3 lbs) and small enough to fit in a pocket or to be carried by the belt clip attached to the power supply
  • UVP Field Packs are available with a choice of options for customization or in three standard configurations
  • Part number 95-0256-03 provides two interchangeable light sources (365 nm and 254 nm). Lamp connector is located on the outside of the power supply for this configuration only
  • Other configurations come with the light source permanently connected to the power supply

Product Details

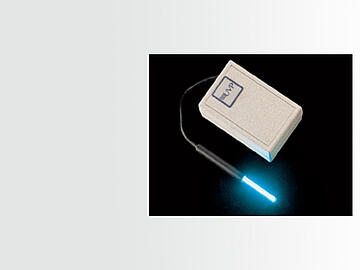

UVP Pen-Ray Field Packs combine a UVP Pen-Ray UV light source and a DC power supply (with 9 V battery) in a compact, portable package.

Applications include:

  • Field use inspections
  • Spectroscopy
  • Fluorometry
  • Wavelength Calibration

Order Information

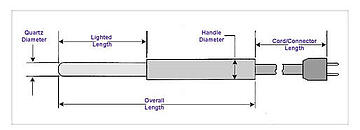

UVP Pen-Ray Field Packs
Part NumberLighted
Length
Total
Length
Quartz
Diameter
Handle
Diameter
Primary
Output
95-0256-011.75"
(44.5 mm)
4.25"
(108 mm)
0.256"
(6.5mm)
0.375"
(9.5 mm)
302 nm Phosphor/jacket
95-0256-021.75"
(44.5 mm)
4.25"
(108 mm)
0.256"
(6.5mm)
0.375"
(9.5 mm)
254 nm
95-0256-031.75"
(44.5 mm)
4.25"
(108 mm)
0.256"
(6.5mm)
0.375"
(9.5mm)
365 nm Phosphor/jacket
and 254 nm
