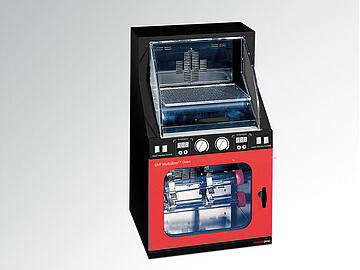

UVP Multidizer Oven Oven with two separate incubation chambers

  • Microprocessor controlled incubation temperature
  • Accurate temperature and rotation speed control
  • Carousel for multiple bottle sizes and off-set bottle positioning

Product Details

  • LED display for easy operation
  • Easy to clean interior made of stainless steel
  • Two independent incubation chambers
  • Glass door for easy viewing of samples and blocking of ß-emission from the hybridization chamber

The UVP Multidizer Oven is designed with two separate incubation chambers that work as separate, independent units and can be used for a variety of applications. The two chambers allow for simultaneous hybridization and blotting procedures requiring different sized bottles, motions, or temperature settings. The upper chamber is equipped with a shaker tray that can be exchanged with an acrylic carousel or an orbital tray that are available as optional accessories. The removable protective trays allow for easy cleanup of spilled media. Through the use of accessories, the UVP Multidizer Oven offers several motion functions: shaking, rolling, orbital rocking and rotating all in one unit.

The unit features a precise microprocessor for control of rotation speeds and temperature control. An internal circulating fan maintains temperature uniformity, and a large LED display shows the current chamber temperature. Internal stainless steel construction enables the environment to be easily kept clean. The oven accommodates multiple bottle sizes, arrangements, and offset positions to meet a variety of mixing requirements. The rotary wheel holds twenty 35x150 mm bottles or 35x100 mm bottles, ten 35x300 mm bottles, or a combination of the various sizes.

Technical Data

Technical Data

Number of
Hybridization chambers

2



Lower chamber

Upper chamber

Min. Temperature

10 °C above RT

10 °C above RT

Max. Temperature

99.9 °C

80 °C

Temperature Accuracy

± 0.3° C to 68° C

± 0.3° C to 68° C

Temperature Uniformity

± 0.1° C to 68° C

± 0.1° C to 68° C

Rotor Speed

10 - 18 upm

12 - 20 upm

Bottles(30 cm)

10

4

Bottles(10 cm)

20

8

Bottles(15 cm)

20

8

Shaker tray

Yes, upper chamber

Shaking speed

54-106 rpm

Footprint (W x D)

45 cm x 38 cm

Height / Weight

72 cm / 34.0 kg

Optional Accessories
Orbital tray

Rotation speed

30 rpm @ 2° angle

Maxium load

1.36 kg

Rocker tray

Shaking speed

7-14 rpm

Shaking angle

12°



2nd Carousel
Reciprocating Shaker Tray

Order Information

Previous description: OV 4000

Order number*Description
95-0340-01   (US)
849-30003-4 (EU)
UVP Multidizer Oven, 115 V, US
95-0340-02   (US)
849-30003-2 (EU)
UVP Multidizer Oven, 230 V, UK + EU
95-0340-03   (US)
849-30003-5 (EU)
UVP Multidizer Oven, 100 V

* Hybridization bottles sold separately.

Accessories
Order numberDescriptionQuantity
95-0174-01   (US)
849-30082-0 (EU)
Hybridization bottle small, 10 x 3.5 cm incl. cap,
O-ring and PFTE seal
1
95-0174-02   (US)
849-30080-0 (EU)

Hybridization bottle large, 30 x 3.5 cm incl. cap,
O-ring and PFTE seal

1
849-30083-0Bottle cap incl. O-ring and PFTE seal1
98-0067-03   (US)
849-30050-0 (EU)
Rocker Tray (for UVP Hybridizer Oven, UVP Hybrilinker Oven and
UVP Multidizer Oven)
1
98-0067-04   (US)
849-30051-0 (EU)
Orbital Tray (for UVP Hybridizer Oven, UVP Hybrilinker Oven and
UVP Multidizer Oven)
1
98-0067-02   (US)
849-30052-0 (EU)
Reciprocating Shaker Tray (for UVP Multidizer Oven)1
849-30057-0Carousel, acrylic (for upper chamber UVP Multidizer Oven)1
